The Previews tab of the NavGraph Graph tool window renders every @Preview in your project, not just the screens you annotated for the graph, grouped by module and package. It's a living design system overview: scan all your screens and components at a glance, and jump to any preview's source with a double click.

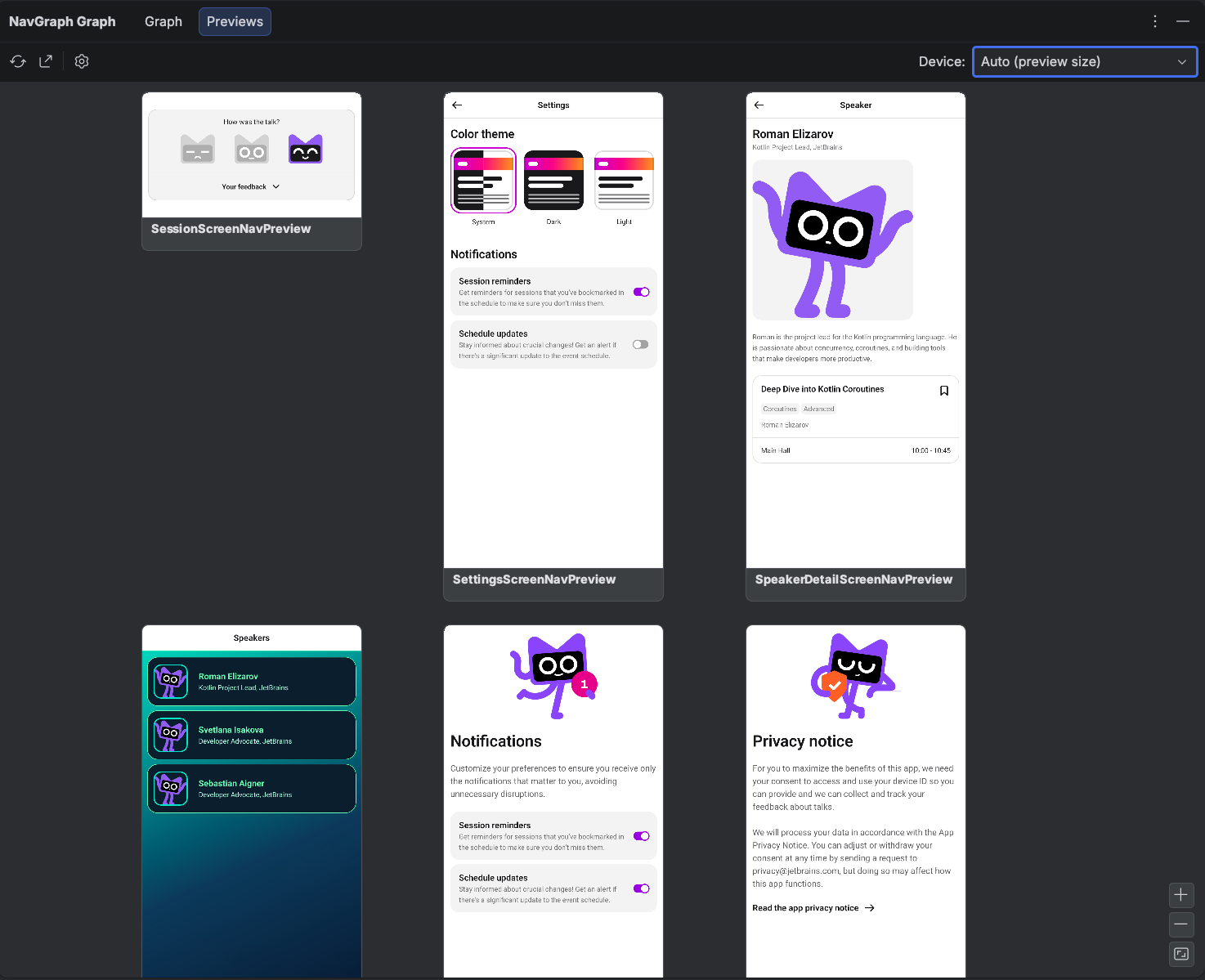

Preview Gallery tab

A few things happen automatically:

  • Multipreview meta-annotations are expanded. A composable annotated with, say, a custom @ThemePreviews annotation shows up once per underlying @Preview it declares.
  • @PreviewParameter providers are honored, so previews driven by sample data render with that data.
  • Every module contributes. The gallery merges per-module results into one view, with a section header per module, ordered by module and package.

Open It

Open View > Tool Windows > NavGraph Graph and switch to the Previews tab. The canvas works just like the Graph tab: drag to pan, wheel to zoom (or the zoom buttons in the bottom right corner), and the Device combo reframes every thumbnail to a chosen device aspect ratio. There are no edges or transitions here, just the previews themselves.

If you haven't installed the IDE plugin yet, see Getting Started.

How the Data Is Produced

The gallery is generated by the Gradle plugin, the same device free Layoutlib pipeline that renders the graph thumbnails, so no emulator or device is needed:

./gradlew :app:generatePreviewGallery

This renders every @Preview into build/navgallery along with a manifest the IDE reads. You usually don't run it by hand: the tab's Refresh button runs generatePreviewGallery for you and reloads the result.

On demand only

The gallery tasks are never wired into generateNavGraph or check, so they cost nothing unless you run them. If you don't want them registered at all, set galleryEnabled.set(false) in the navgraph { } block.

The gallery exports to standalone artifacts, either from the tab's Export… toolbar action or directly from the command line:

./gradlew :app:exportPreviewGalleryHtml  # a standalone HTML gallery
./gradlew :app:exportPreviewGalleryImage  # a single PNG contact sheet

The HTML export is a self-contained page you can open anywhere (attach it to a PR, drop it in a design review), with the same module and package grouping as the tab:

HTML preview gallery export

See Real Generated Output

The nav-results/ directory contains committed gallery exports from real-world projects (the KotlinConf app, Now in Android, and SimpMusic) under nav-results/preview-gallery/, alongside their full navigation graphs under nav-results/nav-graphs/.
